FLOOR MOUNT EXPOSED MODEL

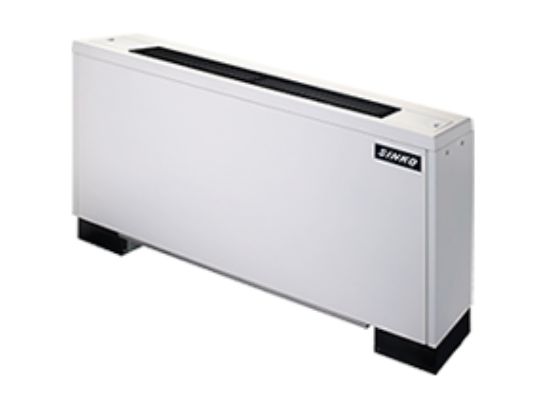

TF model is an FCU for the perimeter near a window.
By installing it in a perimeter with high thermal load, it is possible to handle local loads, providing a comfortable indoor space.
For construction that places importance on interior design, we can also propose a concealed type (optional).

TF-SW Model Cooling Capaities

Specification

Entering Air Condition DB:24℃ WB:17.8℃(RH=55%)
TC Water
Flow
L/sec		 W.P.D
kPa		 Air vol.at
50Pa
l/s		 Cooling capacity at 7℃
SH TH
kW kW
300 0.15
0.20		 5.6
9.2		 152 1.76
1.86		 2.25
2.46
400 0.20
0.25		 13.1
19.3		 183 2.34
2.43		 3.17
3.37
600 0.20
0.30		 15.2
30.7		 283 3.22
3.47		 4.24
4.77
800 0.25
0.30		 29.0
39.7		 331 3.97
4.11		 5.43
5.72
1000 0.40
0.50		 11.3
16.6		 436 5.12
5.33		 6.73
7.17
1200 0.40
0.50		 13.2
19.5		 567 6.30
6.60		 8.21
0.80
1400 0.40
0.55		 14.7
25.4		 663 7.10
7.60		 9.21
10.18

Note

  • 1.BASED ON "Hi" FAN-SPEED

Note

  • 1.RIGHT HAND UNITS IS SHOWN UNLESS OTHERWISE SPECIFIED HAND PIPE CONNECTION FURNISTHED.
  • 2.FURNISH ACCESS DOOR TO SERVICE FAN MOTOR
  • 3.WIRING WORKS BETWEEN MOTOR AND SWITCH AND UNIT TO POWER SOURCE BY CONTRACTORS

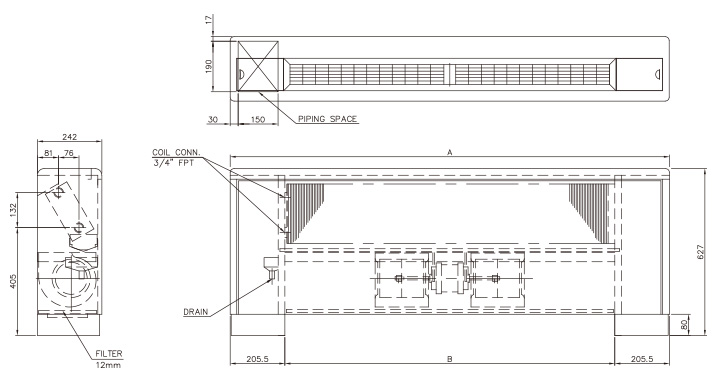

Dimension

Model Size Dimension(mm) Number of Net Weight
A B Fan(s) Motor(s) (kg)
TF-300 980 569 1 1 30
TF-400 1230 819 2 1 35
TF-600 1365 954 2 1 39
TF-800 1650 1239 2 1 48
TF-1000 1845 1434 3 2 54
TF-1200 2095 1684 4 2 62
TF-1400 2275 1864 4 2 68
Casing Galvanized Steel with painted
Fan Galvanized Steel fabricated,Forward-Curved DIDW Fan
Motor 3-Speed ,PSC with Capacitor Cap and Flexible Codut
Power Source AC 220V, 50Hz/60Hz , Single Pahse
Coil Slit Surfased,Aluminm Finned Coil complete with Female Sockets at inlet/Outlet Conn,And Air Vent
Operating Pressure Max 1700kPa(250psig) unless otherwise pecified
Drain Pan Stainless Steel,SUS430
