Special Model FCU Mega Model MH
If you request PDF data such as dimensions and specifications, please contact us here.

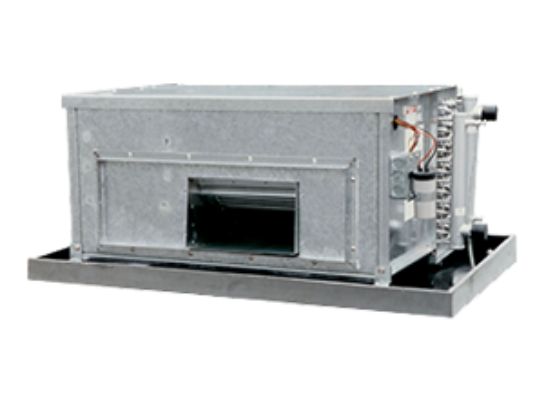

MEGA MODEL/Horizontal Type
Large ceiling fan coil unit
Individual air conditioning model for large spaces, significantly reducing the cost per coil capacity.
Available in a choice of 4-row or 6-row coils, standard and high static pressure models,accommodating a wide range of requirements.
MH Model Cooling Capaities -4ROWS
Specification
| Entering Air Condition DB:24℃ WB:17.8℃(RH=55%) | |||||
|---|---|---|---|---|---|
| MH | Water Flow L/sec |
W.P.D kPa |
Air vol.at 50Pa l/s |
Cooling capacity at 7℃ | |
| SH | TH | ||||
| kW | kW | ||||
| 204 | 0.5 0.67 |
11.9 25 |
310 | 4.2 4.3 |
6.4 6.9 |
| 304 | 0.5 0.67 |
15.1 30 |
426 | 5.6 5.8 |
8.5 9.2 |
| 404 | 0.5 0.67 |
3.2 6 |
650 | 7.8 8.3 |
10.6 11.7 |
| 504 | 0.5 0.67 |
1.5 7 |
840 | 9.6 10.3 |
12.7 14.3 |
Note
- 1.BASED ON "Hi" FAN-SPEED
Note
- 1.LEFT HAND UNITS IS SHOWN UNLESS OTHERWISE SPECIFIED LEFT HAND PIPE CONNECTION FURNISTHED.
- 2.FURNISH ACCESS DOOR TO SERVICE FAN MOTOR
- 3.WIRING WORKS BETWEEN MOTOR AND SWITCH AND UNIT TO POWER SOURCE BY CONTRACTORS
- 4.FILTER SECTION IS OPTIONAL COMPONENT

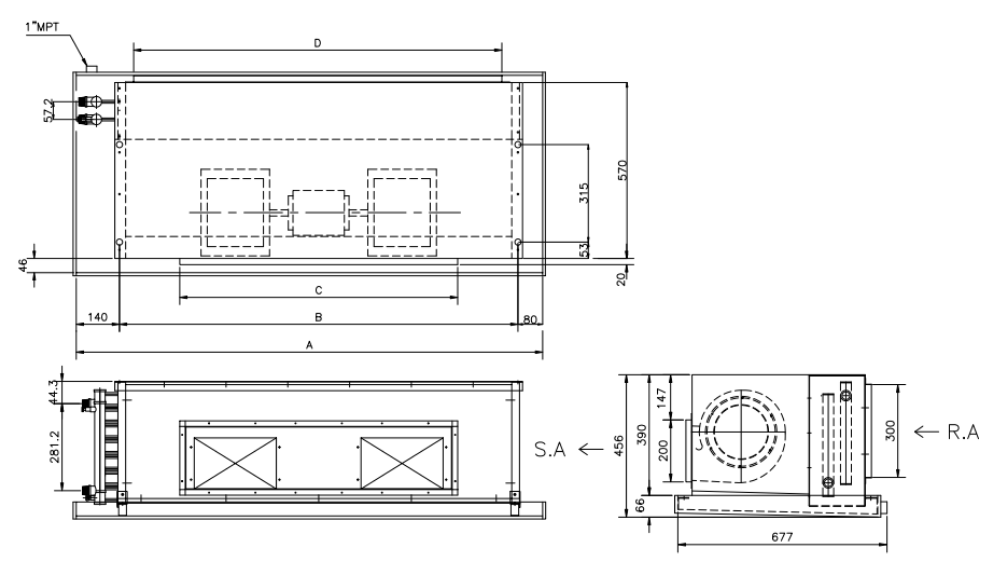

Dimension
| Model Size | Dimension(mm) | Coil Conn | Number of | Net Weight | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | Fan(s) | Motor(s) | (kg) | |
| MH-204 | 810 | 590 | 450 | 550 | 1" MPT | 1 | 1 | 46 |
| MH-304 | 990 | 770 | 600 | 730 | 1" MPT | 1 | 1 | 67 |
| MH-404 | 1330 | 1110 | 750 | 1070 | 1-1/4" MPT | 2 | 1 | 75 |
| MH-504 | 1510 | 1290 | 900 | 1250 | 1-1/4" MPT | 2 | 1 | 98 |
| Casing | Galvanized Steel |
|---|---|
| Fan | Galvanized Steel fabricated,Forward-Curved DIDW Fan |
| Motor | 3-Speed ,PSC with Capacitor Cap and Flexible Codut |
| Power Source | AC 220V, 50Hz/60Hz , Single Pahse |
| Coil | Slit Surfased,Aluminm Finned Coil complete with Female Sockets at inlet/Outlet Conn,And Air Vent |
| Operating Pressure | Max 1700kPa(250psig) unless otherwise pecified |
| Drain Pan | Stainless Steel,SUS430 |
