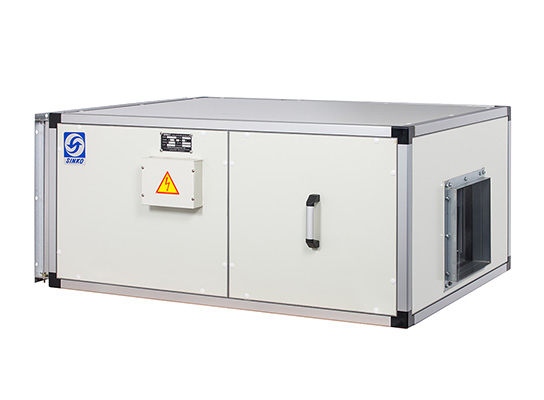

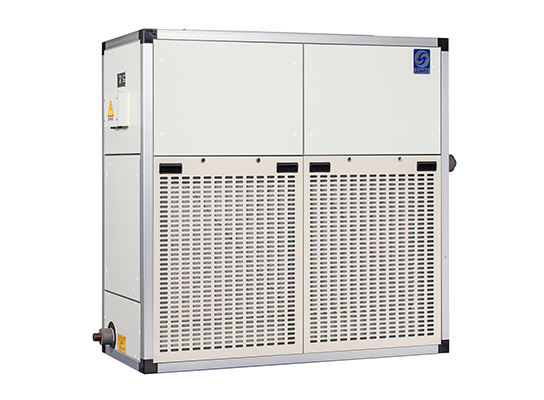

Large Air Volume FCU EC Moter Model - GTSCD／GTSFD
If you request PDF data such as dimensions and specifications, please contact us here.
FEATURES
Model GTSCD/GTSFD
Energy-saving and space-saving model using EC motor. 70% energy saving compared to AC motor model (at L speed operation). Simple operation control by thermostat possible.
GTSCD SPECIFICATION
| Main Component | GTSCD-50 | GTSCD-100 | |
|---|---|---|---|
| Air Volume | ( l/s ) | 835 | 1670 |
| ( m3/h ) | 3000 | 6000 | |
| ( CFM ) | 1770 | 3530 | |
| Motor | Type | Permanent magnet, Electronically commuted motor | |
| Power Source | AC 220~240V/ 1ph/ 50/60Hz | ||
| Output Power | 0.75 kW x1 | 0.75 kW x2 | |
| Fan | Type | DIDW forward curved centrifugal fan | |
| Coil | Rows | 4 or 6 Rows | |
| Fin Spacing | 12FPI | ||
| Header Size | 25A | 32A | |
| Water Coil | Max. working pressure: 0.98 (MPa) | ||
| Tube | 3/8” Dia. Seamless copper tube | ||
| Fin | Aluminum sheet thickness 0.11mm | ||
| Header | Copper pipe & copper connection | ||
| Drain Pan | Type | SUS304 covered with PE insulation board | |
| Casing | Panel | Double skin panel: 30mm or 50mm (Optional) | |
| Internal skin: 0.5mm Galvanized steel | |||
| External skin: 0.5mm pre-painted steel | |||
| Insulation: Polyurethane foam (PU) | |||
| Framework | Aluminum frame post | ||
| Filter | Type | Metal frame + non-woven filter thickness 20mm | |
GTSFD SPECIFICATION
| Main Component | GTSFD-50 | GTSFD-100 | |
|---|---|---|---|
| Air Volume | ( l/s ) | 835 | 1670 |
| ( m3/h ) | 3000 | 6000 | |
| ( CFM ) | 1770 | 3530 | |
| Motor | Type | Permanent magnet, Electronically commuted motor | |
| Power Source | AC 220~240V/ 1ph/ 50/60Hz | ||
| Output Power | 0.75 kW x1 | 0.75 kW x2 | |
| Fan | Type | DIDW forward curved centrifugal fan | |
| Coil | Rows | 4 or 6 Rows | |
| Fin Spacing | 12FPI | ||
| Header Size | 25A | 32A | |
| Water Coil | Max. working pressure: 0.98 (MPa) | ||
| Tube | 3/8” Dia. Seamless copper tube | ||
| Fin | Aluminum sheet thickness 0.11mm | ||
| Header | Copper pipe & copper connection | ||
| Drain Pan | Type | SUS304 covered with PE insulation board | |
| Casing | Panel | Double skin panel: 30mm or 50mm (Optional) | |
| Internal skin: 0.5mm Galvanized steel | |||
| External skin: 0.5mm pre-painted steel | |||
| Insulation: Polyurethane foam (PU) | |||
| Framework | Aluminum frame post | ||
| Filter | Type | Metal frame + non-woven filter thickness 20mm | |
