Fan Coil Unit
EC MOTOR MODEL-GTCRH
If you request PDF data such as dimensions and specifications, please contact us here.
FEATURES

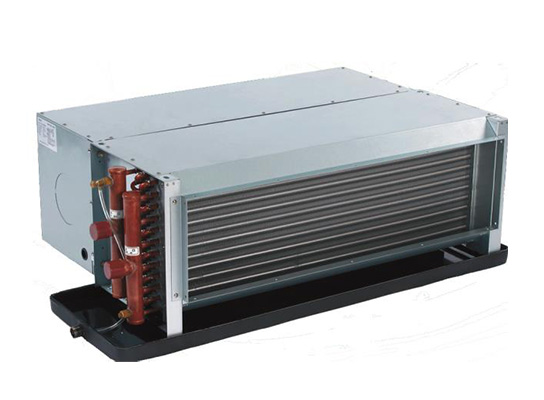

Model GTCRH
Energy saving FCU.
Equipped with an EC motor, it can reduce power consumption by 70% (Lo operation) compared to AC motor models.
The controller is integrated with the motor, making it easy to replacement.
SPECIFICATION
| Type | Ceiling recessed, high static type | ||||||
|---|---|---|---|---|---|---|---|
| Model | GTCRH | ||||||
| Size | 600 | 1000 | 1200 | 1600 | 2000 | ||
| Cooling capacity (kW) | SH | 4.57 | 7.34 | 8.71 | 10.85 | 13.52 | |
| TH | 6.38 | 10.76 | 12.40 | 15.19 | 20.19 | ||
| Fan | Type | Forward-curved DIDW centrifugal fan | |||||
| Number | 1 | 2 | 2 | 3 | 4 | ||
| Air Volume (L/sec) |
HW | H | 373 | 603 | 650 | 895 | 1083 |
| M | 286 | 471 | 570 | 695 | 819 | ||
| L | 210 | 315 | 404 | 467 | 552 | ||
| Motor | Type | Permanent magnet synchronous motor | |||||
| Power supply | AC 220V 50Hz | ||||||
| Number | 1 | 1 | 1 | 2 | 2 | ||
| Input power (watt) |
HW | H | 231 | 313 | 318 | 467 | 553 |
| M | 109 | 157 | 201 | 230 | 263 | ||
| L | 47 | 64 | 83 | 96 | 116 | ||
| Coil | Type | Slit surfaced, aluminum finned coil complete with inlet/outlet Conn. and air vent. | |||||
| Row/ FPI | 4 Row / 12 FPI | ||||||
| Operating pressure |
1700kPa(250psig) maximum ,unless otherwise specified | ||||||
| Piping | Inlet / Outlet Conn. |
3/4” FPT |
1” MPT |
1” MPT |
1” MPT |
1-1/4” MPT |
|
| Drain Pan | Stainless Steel, SUS 430 3/4” MPT Conn. | ||||||
| Water flow (L/sec) | 0.305 | 0.513 | 0.592 | 0.725 | 0.965 | ||
| Insulation for drain pan | 6mm thickness insulation material | ||||||
| Weight (kg) |
Without Plenum | 35 | 40 | 46 | 60 | 72 | |
| With Plenum | 37 | 44 | 52 | 68 | 82 | ||
| Holding water (L) | 2.6 | 3.1 | 3.9 | 4.5 | 5.7 | ||
- 1. Cooling capacity is based on DB 24℃,WB 17.8℃,EWT 7℃,LWT 12℃.
- 2. Cooling capacity, input power are based on H speed.
- 3. Air volume is based on ESP 100Pa without plenum and filter.
