Special Model FCU Mega Model MV
If you request PDF data such as dimensions and specifications, please contact us here.

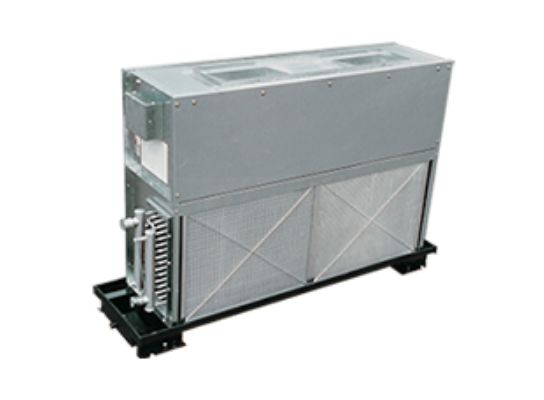

MEGA MODEL/Vertical Type
Floor-standing large fan coil unit
This model is an individual air conditioning model for large spaces. The space-saving design of the equipment allows for effective use of dead space in building shafts and corridors.
Maintenance is easy as it can be accessed from the front.
It can also be used to improve local loads within factories.
MV Model Cooling Capaities -4ROWS
Specification
| Entering Air Condition DB:24℃ WB:17.8℃(RH=55%) | |||||
|---|---|---|---|---|---|
| MV | Water Flow L/sec |
W.P.D kPa |
Air vol.at 50Pa l/s |
Cooling capacity at 7℃ | |
| SH | TH | ||||
| kW | kW | ||||
| 204 | 0.5 0.67 |
11.9 25 |
310 | 4.2 4.3 |
6.4 6.9 |
| 304 | 0.5 0.67 |
15.1 30 |
426 | 5.6 5.8 |
8.5 9.2 |
| 404 | 0.5 0.67 |
3.2 6 |
650 | 7.8 8.3 |
10.6 11.7 |
| 504 | 0.5 0.67 |
1.5 7 |
840 | 9.6 10.3 |
12.7 14.3 |
Note
- 1.BASED ON "Hi" FAN-SPEED
Note
- 1.RIGHT HAND UNITS IS SHOWN UNLESS OTHERWISE SPECIFIED HAND PIPE CONNECTION FURNISTHED.
- 2.FURNISH ACCESS DOOR TO SERVICE FAN MOTOR
- 3.WIRING WORKS BETWEEN MOTOR AND SWITCH AND UNIT TO POWER SOURCE BY CONTRACTORS

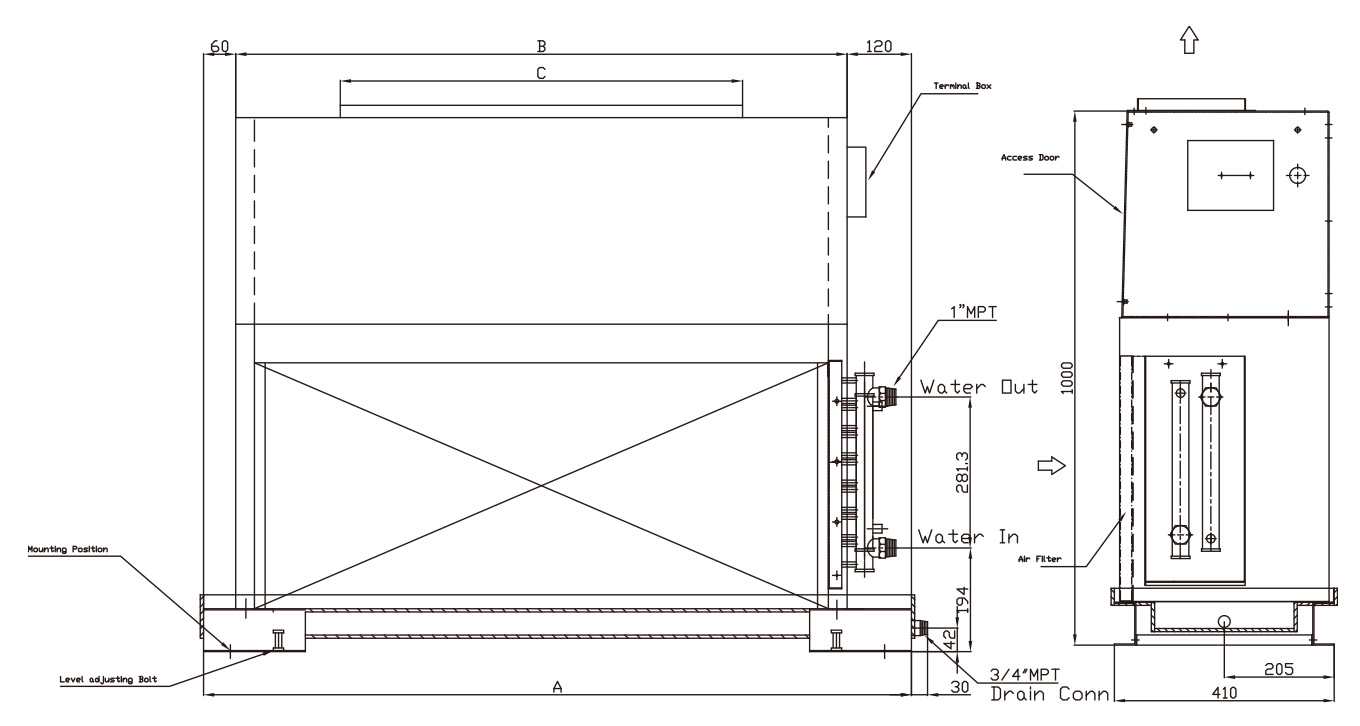

Dimension
| Model Size | Dimension(mm) | Coil Conn | Number of | Net Weight | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | Fan(s) | Motor(s) | (kg) | |
| MV-204 | 800 | 620 | 450 | 1" MPT | 1 | 1 | 66 |
| MV-304 | 980 | 800 | 600 | 1" MPT | 1 | 1 | 74 |
| MV-404 | 1320 | 1140 | 750 | 1-1/4" MPT | 2 | 1 | 85 |
| MV-504 | 1500 | 1320 | 900 | 1-1/4" MPT | 2 | 1 | 108 |
| Casing | Galvanized Steel |
|---|---|
| Fan | Galvanized Steel fabricated,Forward-Curved DIDW Fan |
| Motor | 3-Speed ,PSC with Capacitor Cap and Flexible Codut |
| Power Source | AC 220V, 50Hz/60Hz , Single Pahse |
| Coil | Slit Surfased,Aluminm Finned Coil complete with Female Sockets at inlet/Outlet Conn,And Air Vent |
| Operating Pressure | Max 1700kPa(250psig) unless otherwise pecified |
| Drain Pan | Stainless Steel,SUS430 |
