Special Model FCU Ceiling Mount Exposed Model TC
If you request PDF data such as dimensions and specifications, please contact us here.

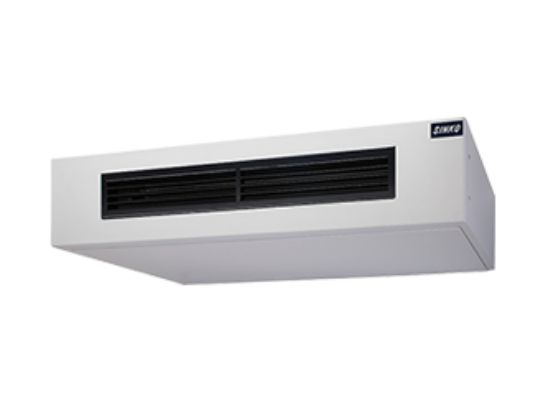

CEILING MOUNT EXPOSED MODEL
We have delivered to many buildings (schools) without ceiling panels.
The exterior is covered with painted exterior panels, and piping is not exposed, making for a neat installation.
Also,It features a direct intake and direct blowing structure, and no duct work is required.
TC-SW Model Cooling Capaities
Specification
| Entering Air Condition DB:24℃ WB:17.8℃(RH=55%) | |||||
|---|---|---|---|---|---|
| TC | Water Flow L/sec |
W.P.D kPa |
Air vol.at 50Pa l/s |
Cooling capacity at 7℃ | |
| SH | TH | ||||
| kW | kW | ||||
| 300 | 0.15 0.20 |
5.6 9.2 |
152 | 1.76 1.86 |
2.25 2.46 |
| 400 | 0.20 0.25 |
13.1 19.3 |
183 | 2.34 2.43 |
3.17 3.37 |
| 600 | 0.20 0.30 |
15.2 30.7 |
283 | 3.22 3.47 |
4.24 4.77 |
| 800 | 0.25 0.30 |
29.0 39.7 |
331 | 3.97 4.11 |
5.43 5.72 |
| 1000 | 0.40 0.50 |
11.3 16.6 |
436 | 5.12 5.33 |
6.73 7.17 |
| 1200 | 0.40 0.50 |
13.2 19.5 |
567 | 6.30 6.60 |
8.21 0.80 |
| 1400 | 0.40 0.55 |
14.7 25.4 |
663 | 7.10 7.60 |
9.21 10.18 |
Note
- 1.BASED ON "Hi" FAN-SPEED
Note
- 1.LEFT HAND UNITS IS SHOWN UNLESS OTHERWISE SPECIFIED LEFT HAND PIPE CONNECTION FURNISTHED.
- 2.WIRING WORKS BETWEEN MOTOR AND SWITCH AND UNIT TO POWER SOURCE

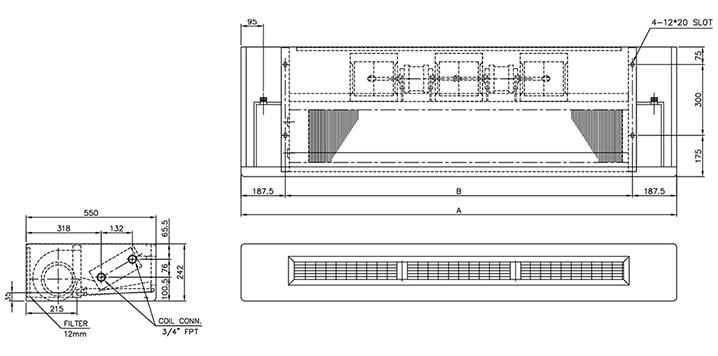

Dimension
| Model Size | Dimension(mm) | Number of | Net Weight | ||
|---|---|---|---|---|---|
| A | B | Fan(s) | Motor(s) | (kg) | |
| TC-300 | 980 | 605 | 1 | 1 | 32 |
| TC-400 | 1230 | 855 | 2 | 1 | 37 |
| TC-600 | 1365 | 990 | 2 | 1 | 42 |
| TC-800 | 1650 | 1275 | 2 | 1 | 47 |
| TC-1000 | 1845 | 1470 | 3 | 2 | 57 |
| TC-1200 | 2095 | 1720 | 4 | 2 | 69 |
| TC-1400 | 2275 | 1900 | 4 | 2 | 79 |
| Casing | Galvanized Steel with painted |
|---|---|
| Fan | Galvanized Steel fabricated,Forward-Curved DIDW Fan |
| Motor | 3-Speed ,PSC with Capacitor Cap and Flexible Codut |
| Power Source | AC 220V, 50Hz/60Hz , Single Pahse |
| Coil | Slit Surfased,Aluminm Finned Coil complete with Female Sockets at inlet/Outlet Conn,And Air Vent |
| Operating Pressure | Max 1700kPa(250psig) unless otherwise pecified |
| Drain Pan | Stainless Steel,SUS430 |
