SERVER AIR HANDLING UNIT DE-D

If you request PDF data such as dimensions and specifications, please contact us here.

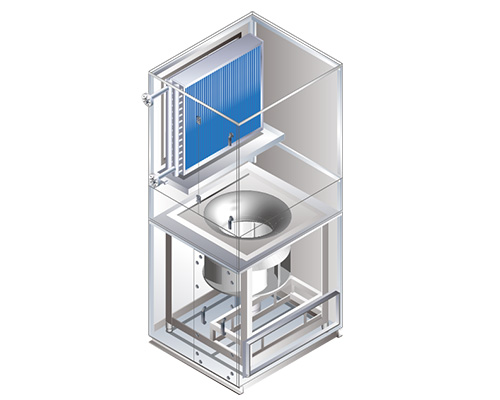

Standard direct control type

Data centers operate 24 hours, 365 days. As the use of AI technology, IoT, and big data accelerates, SINKO's server AHU and server walls AHU support the stable operation of servers. We offer a diverse lineup of products to meet all the air conditioning needs of data centers.
Utilizing our many years of experience and know-how, we provide one-stop air conditioning solutions that are optimal for your scale and usage conditions.

Specification

50Hz: AC Motor

Unit Size Air flow
(m3/h)		 Motor power x quantity Size x number of fans Total static
pressure
（Pa）		 Static
pressure outside
the equipment
（Pa）		 Outer
drawing
7 6720 3.7kW/4P X 1 PF-22D-80F X 1 720 150 A
11 10080 3.7kW/4P X 1 PF-24D-75F X 1 741 150 A
14 13440 5.5kW/4P X 1 PF-24D-100F X 1 727 150 A
17 16800 3.7kW/4P X 2 PF-22D-100F X 2 711 150 B
21 20160 3.7kW/4P X 2 PF-24D-75F X 2 704 150 B
24 23520 5.5kW/4P X 2 PF-24D-85F X 2 727 150 B
27 26880 5.5kW/4P X2 PF-24D-100F X 2 727 150 B
31 30240 5.5kW/4P X 2 PF-24D-120F X 2 716 150 B
36 35280 5.5kW/4P X 3 PF-24D-85F X 3 727 150 B
41 40320 5.5kW/4P X 3 PF-24D-100F X 3 727 150 B
46 45360 5.5kW/4P X 3 PF-24D-120F X 3 716 150 B
54 53760 5.5kW/4P X 4 PF-24D-100F X 4 727 150 B
61 60480 5.5kW/4P X 4 PF-24D-120F X 4 716 150 B

60Hz: AC Motor

Unit Size Air flow
(m3/h)		 Motor power x quantity Size x number of fans Total static
pressure
（Pa）		 Static
pressure outside
the equipment
（Pa）		 Outer
drawing
7 6720 3.7kW/4P X 1 PF-20D-75F X 1 720 150 A
11 10080 5.5kW/4P X 1 PF-22D-75F X 1 741 150 A
14 13440 5.5kW/4P X 1 PF-22D-105F X 1 727 150 A
17 16800 3.7kW/4P X 2 PF-20D-100F X 2 711 150 B
21 20160 5.5kW/4P X 2 PF-22D-75F X 2 704 150 B
24 23520 5.5kW/4P X 2 PF-22D-85F X 2 727 150 B
27 26880 5.5kW/4P X 2 PF-22D- 105F X 2 727 150 B
31 30240 5.5kW/4P X 2 PF-24D-120F X 2 716 150 B
36 35280 5.5kW/4P X 3 PF-22D-85F X 3 727 150 B
41 40320 5.5kW/4P X 3 PF-22D-105F X 3 727 150 B
46 45360 5.5kW/4P X 3 PF-24D-120F X 3 716 150 B
54 53760 5.5kW/4P X 4 PF-22D-105F X 4 727 150 B
61 60480 5.5kW/4P X 4 PF-24D-120F X 4 716 150 B

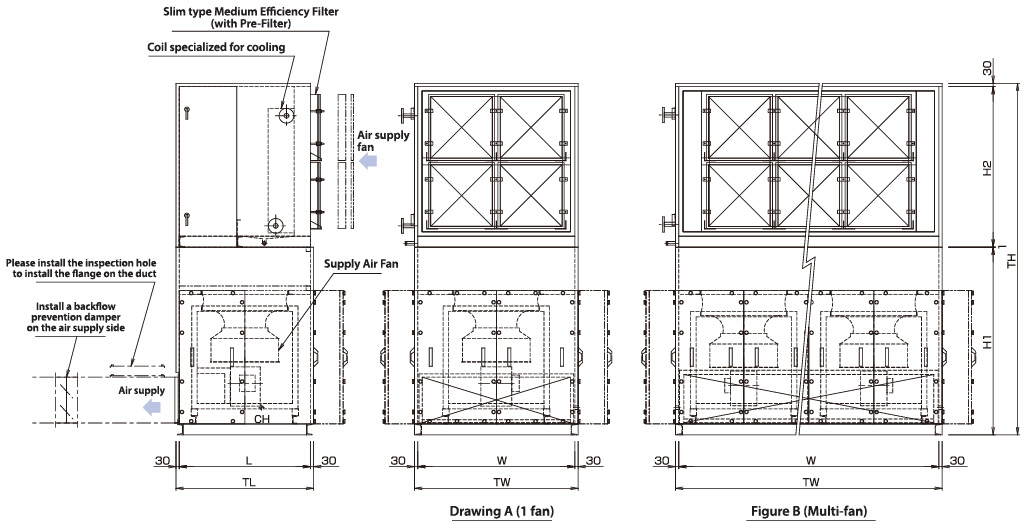

Dimension

50Hz: AC Motor

Unit Size TW TH TL W H1 H2 L Outer
drawing
7 1510 2463 1170 1450 1581 851 1110 A
11 1510 2858 1270 1450 1651 1176 1210 A
14 1510 3213 1270 1450 1701 1481 1210 A
17 2280 3123 1170 2220 1611 1481 1110 B
21 2460 3163 1270 2400 1651 1481 1210 B
24 2460 3183 1270 2400 1671 1481 1210 B
27 2770 3213 1270 2710 1701 1481 1210 B
31 3100 3243 1270 3040 1731 1481 1210 B
36 3540 3183 1270 3480 1671 1481 1210 B
41 3970 3213 1270 3910 1701 1481 1210 B
46 4410 3243 1270 4350 1731 1481 1210 B
54 4410 3443 1420 4350 1701 1711 1360 B
61 4410 3623 1420 4350 1731 1861 1360 B

60Hz: AC Motor

Unit Size TW TH TL W H1 H2 L Outer
drawing
7 1510 2463 1170 1450 1581 851 1110 A
11 1510 2868 1270 1450 1651 1176 1210 A
14 1510 3223 1270 1450 1711 1481 1210 A
17 2280 3133 1170 2220 1621 1481 1110 B
21 2460 3173 1270 2400 1661 1481 1210 B
24 2460 3193 1270 2400 1681 1481 1210 B
27 2770 3223 1270 2710 1711 1481 1210 B
31 3100 3243 1270 3040 1731 1481 1210 B
36 3540 3193 1270 3480 1681 1481 1210 B
41 3970 3213 1270 3910 1701 1481 1210 B
46 4410 3243 1270 4350 1731 1481 1210 B
54 4410 3443 1420 4350 1701 1711 1360 B
61 4410 3623 1420 4350 1731 1861 1360 B

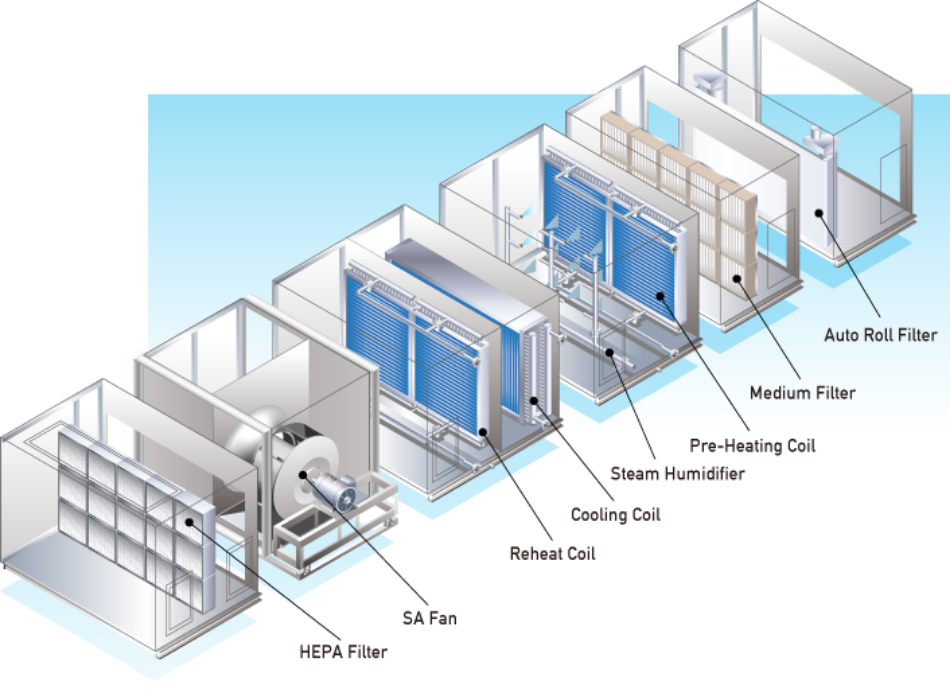

Technical documentation for
