AIR HANDLING UNIT Vertical Type TAH-V

If you request PDF data such as dimensions and specifications, please contact us here.

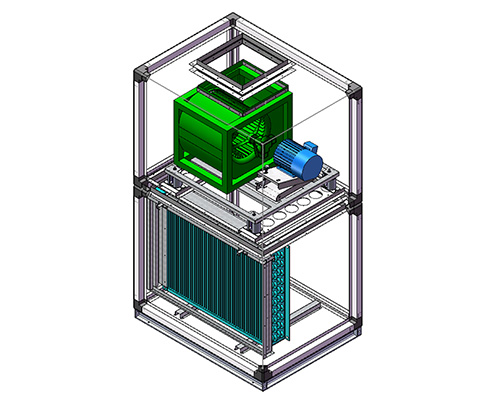

Vertical type AHU reduce the space required for equipment installation and improve space efficiency.

Unit Size	Air volume			Coil			Motor		Rated current （A）	Fan
Unit Size	l/s	CMH	CFM	Area(m²)	Pitch x L	Piping (mm)	kW	Qty	Rated current （A）	Fan
25	688	2470	1460	0.275	14P x 515	32	1.5	1	3.3	FDA-200C
35	999	3600	2120	0.400	14P x 750	40	1.5	1	3.3	FDA-250C
50	1319	4750	2800	0.527	16P x 865	40	1.5	1	3.3	FDA-280C
55	1521	5490	3230	0.610	20P x 800	40	2.2	1	4.6	FDA-315C
70	1903	6860	4040	0.762	20P x 1000	50	2.2	1	4.6	FDA-355C
80	2190	7900	4650	0.876	20P x 1150	50	3.7	1	7.7	FDA-355C
100	2718	9810	5770	1.090	22P x 1300	50	3.7	1	7.7	FDA-400C
120	3137	11320	6660	1.257	24P x 1375	50	3.7	1	7.7	FDA-450C
140	3693	13330	7840	1.481	24P x 1620	65	5.5	1	11	FDA-450C
150	4197	15150	8910	1.684	26P x 1700	65	5.5	1	11	FDA-500C
170	4752	17160	10090	1.907	26P x 1925	65	5.5	1	11	FDA-500C
200	5643	20370	11980	2.264	26P x 2285	80	5.5	1	11	FDA-560C
230	6293	22710	13360	2.523	28P x 2365	80	7.5	1	15	FDA-630C
250	7173	25900	15230	2.883	32P x 2365	80	7.5	1	15	FDA-630C

Note: Coil Face Velocity 2.5m/s

TAH-V	A	B	C	Max. Fan	Max. kW
25	1875	950	850	FDA-200C	1.5
35	1875	1050	1100	FDA-250C	1.5
50	1975	1100	1200	FDA-280C	3.7
55	2325	1200	1200	FDA-315C	3.7
70	2325	1300	1350	FDA-355C	5.5
80	2325	1300	1350	FDA-355C	5.5
100	2525	1300	1650	FDA-400C	5.5
120	2625	1350	1750	FDA-450C	7.5
140	2625	1400	2000	FDA-450C	7.5
150	2850	1500	2070	FDA-500C	7.5
170	2950	1500	2300	FDA-500C	7.5
200	3100	1600	2700	FDA-560C	11
230	3300	1600	2750	FDA-630C	11
250	3400	1700	2750	FDA-630C	11

(mm)

Note: Dimension is based on a max. 8 rows coil.
