Large Air Volume FCU AC Moter Model -
TSCD／TSFD
If you request PDF data such as dimensions and specifications, please contact us here.
FEATURES
Model TSCD / TSFD
Large Air Volume Fan Coil Unit

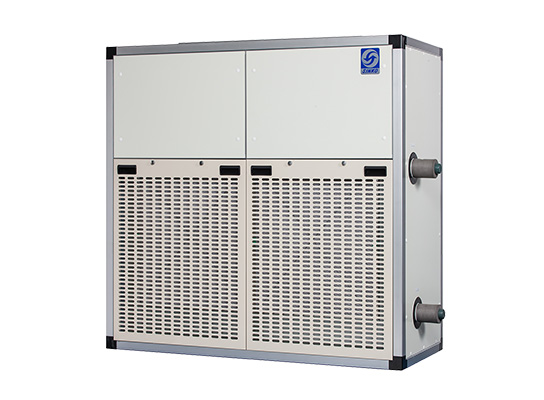

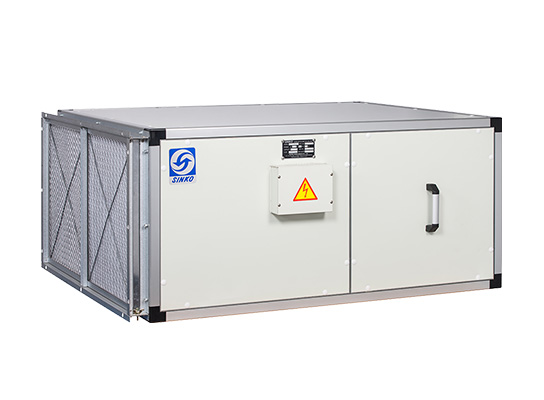

Models that take condensation into consideration using sandwich panels. Two models are available: ceiling-mounted and floor-standing,and are high-quality,reliable units.
TSCD SPECIFICATION
| Main Component | TSCD-50 | TSCD-100 | TSCD-150 | |
|---|---|---|---|---|
| Air Volume | ( l/s ) | 835 | 1670 | 2500 |
| ( m3/h ) | 3000 | 6000 | 9000 | |
| ( CFM ) | 1770 | 3530 | 5300 | |
| Motor | Type | Permanent split capacitor 3-speed type with ball bearing | ||
| Power Source | AC 220-240V/1ph/ 50Hz or 60 Hz | |||
| Fan | Type | Centrifugal forward curved DIDW direct-driven type | ||
| Coil | Rows | 4 or 6 Rows | ||
| Fin Spacing | 12FPI | |||
| Header Size | 25A | 32A | 32A | |
| Water Coil | Max. working pressure: 0.98 (MPa) | |||
| Higher working pressure available on request | ||||
| Main Tube | 3/8" dia copper tube | |||
| Fin | Aluminum, 0.11mm thickness | |||
| Header | Copper | |||
| Drain Pan | Drain Pan | Stainless steel 304 | ||
| Casing | Panel | Double skinned casing :30mm or 50mm (option) thick Internal panel: Galvanised iron sheet, 0.5mm thick External panel: Pre-coated steel sheet, 0.5mm thick Insulation Foamed polyurethane | ||
| Main Frame | Extruded Aluminum | |||
| Filter | Filter | 20mm panel filter, Non-woven type | ||
TSFD SPECIFICATION
| Main Component | TSFD-50 | TSFD-100 | TSFD-150 | |
|---|---|---|---|---|
| Air Volume | ( l/s ) | 835 | 1670 | 2500 |
| ( m3/h ) | 3000 | 6000 | 9000 | |
| ( CFM ) | 1770 | 3530 | 5300 | |
| Motor | Type | Permanent split capacitor 3-speed type with ball bearing | ||
| Power Source | AC 220-240V/1ph/ 50Hz or 60 Hz | |||
| Fan | Type | Centrifugal forward curved DIDW direct-driven type | ||
| Coil | Rows | 4 or 6 Rows | ||
| Fin Spacing | 12FPI | |||
| Header Size | 25A | 32A | 32A | |
| Water Coil | Max. working pressure: 0.98 (MPa) | |||
| Higher working pressure available on request | ||||
| Main Tube | 3/8" dia copper tube | |||
| Fin | Aluminum, 0.11mm thickness | |||
| Header | Copper | |||
| Drain Pan | Drain Pan | Stainless steel 304 | ||
| Casing | Panel | Double skinned casing :30mm or 50mm (option) thick Internal panel: Galvanised iron sheet, 0.5mm thick External panel: Pre-coated steel sheet, 0.5mm thick Insulation Foamed polyurethane | ||
| Main Frame | Extruded Aluminum | |||
| Filter | Filter | 20mm panel filter, Non-woven type | ||
